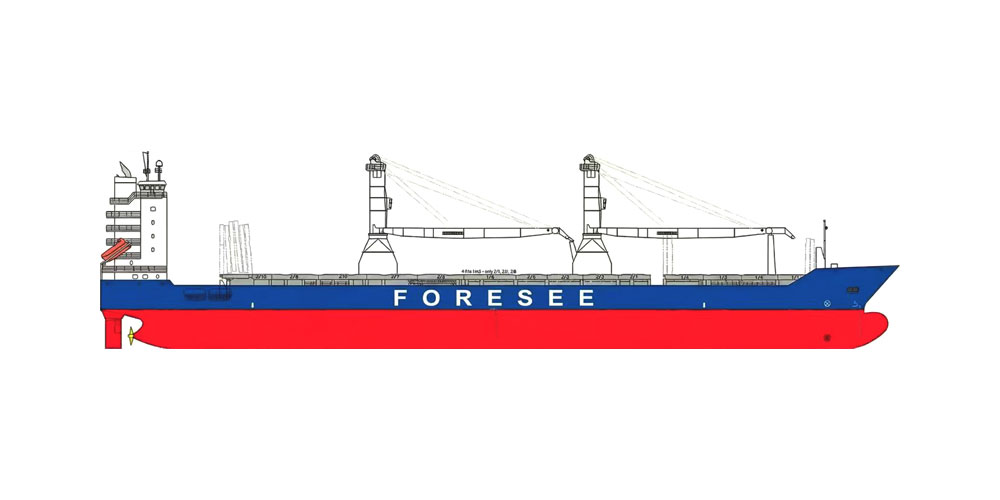

MV Liberty Harvest
MV FSS Shanghai
下载“MV FSS Shanghai”号船舶的技术规格
船舶规格
GENERAL INFORMATION
Builders / Year
Volharding Shipyards / 2006
Type
Multipurpose General Cargo
Flag / Home Port
Liberia / MONROVIA
IMO Number
9273806
Class
ABS / Ice Class E3 (GL)
P&I Club
CPI
DIMENSIONS & TONNAGE
LOA / LPP
156.75 m / 147.09 m
Beam
21.50 m
Draft (Loaded)
7.80 m
Air Draft
42.20 m
DWT (incl TWD)
12,767.00 mt
GT / NT
10,899.00 / 5,766.00 mt
CARGO HOLDS
Number of Holds
2
Hold 1 (Bale / Grain)
3,536 / 3,436 m³
Hold 2 (Bale / Grain)
15,345 / 15,258 m³
Total (Bale / Grain)
18,881 / 18,694 m³
Tanktop Load
15.00 MT/m²
Tweendeck / HC Load
3.00 / 3.50 MT/m²
CARGO GEAR & TANK CAPACITY
Cranes
2 × 240 MT (Portside)
Combined / Max Reach
480 MT / 33.00 m
Hatch Type
Folding Hatches
HFO / MGO
718.00 m³ / 110.00 m³
Ballast / Fresh Water
7,034 m³ / 75.90 m³
Bow Thruster
YES
EQUIPMENT & CONTAINER
Hold Equipment
CO2 Installed · Grain (IMSBC) · Dangerous Cargo (DG) · Sprinkler System · Air Changes: 6/hr
A60 / Dehumidifier
Bulkheads: NO · Dehumidifier: NO
Container Capacity
675 TEU / 323 FEU · Reefer Plugs: 0
