Fleet Introduction
MV LIBERTY HARVEST | MV LIBERTY HARVEST
MV Liberty Harvest
MV FSS Shanghai

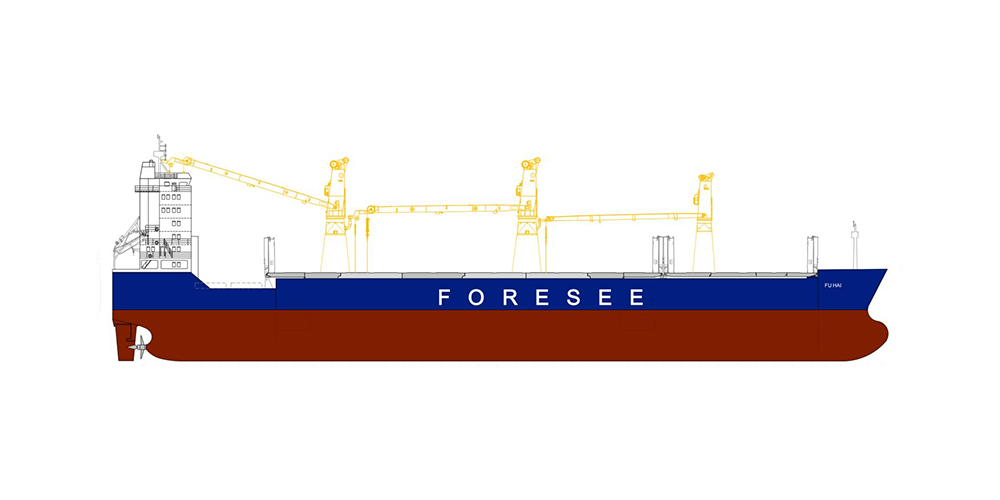

MV FU HAI
MV GRAVITY
Download“MV FU HAI”Technical specifications of the vessel
Ship specifications
GENERAL
IMO
9766657
Flag / Home Port
Hong Kong
Built
2016
Type
Multi-Purpose Carrier
Class
DNV
Shipbuilder
Huang Hai Ship Building Co., Ltd.
DIMENSIONS
LOA
166.10 m
LPP
158.32 m
Beam
27.40 m
Depth to Main Deck
15.50 m
Draft
11.00 m
TONNAGE & CAPACITY
DWT
31,661.01 mt
GT / NT
22,362 / 10,179
CONTAINER CAPACITY
Hold
628 × 20' / 313 × 40'
Deck
816 × 20' / 362 × 40'
Total
1,444 × 20' / 675 × 40'
HOLDS & HATCHES
Number of Holds
2
Hold 1 Grain / Bale
9,622.313 / 9,500 m³
Hold 2 Grain / Bale
29,337.17 / 28,950 m³
Total Grain / Bale
38,959.48 / 38,450 m³
Tanktop Load
20 t/m²
Tweendeck Load
3.2–4 t/m²
Hatch Cover Load
3.0 t/m²
GEAR, LIFTING & FEATURES
Crane No. 1
80 mts @ 20 m
Crane No. 2
250 mts @ 16 m
Crane No. 3
250 mts @ 16 m
Tandem Lift
Cranes 2 & 3: 500 mts / 36 m max reach
Bow Thruster
No
TANK CAPACITY & SPECIAL FEATURES
HFO / MGO
1,546.91 / 183.39 m³
Ballast / Fresh Water
12,758.38 / 368.23 m³
